Module

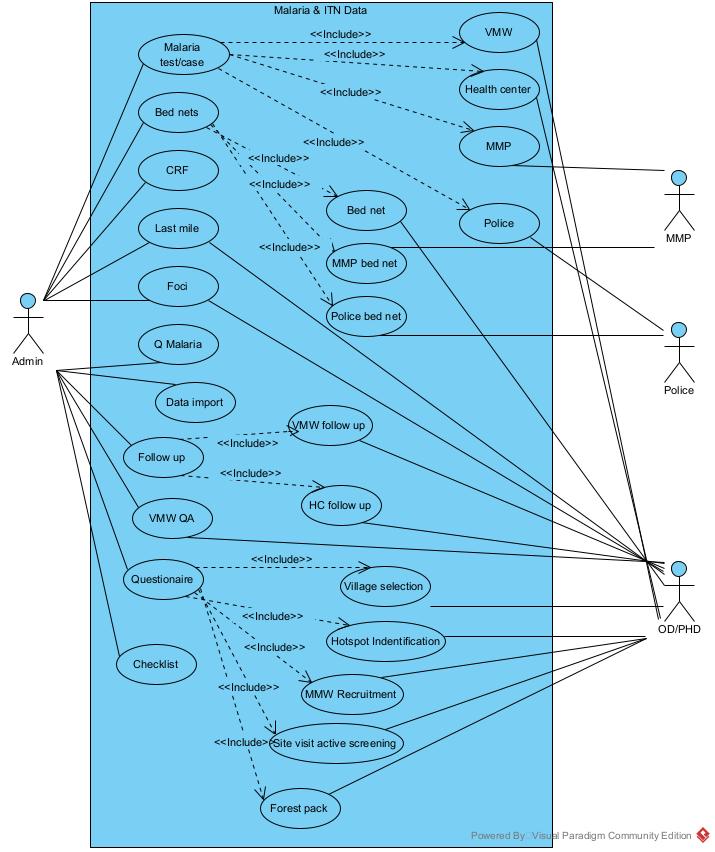

Use case diagram

Use case malaria & ITN data

Use case for malaria & ITN data

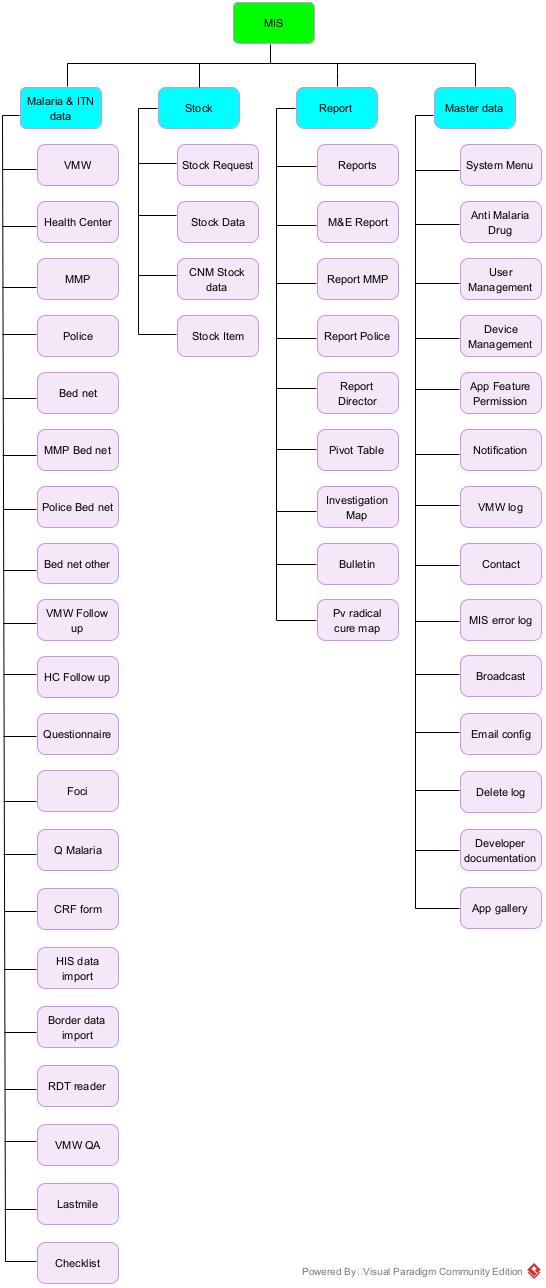

Detail diagram

Malaria & ITN Data

VMW

Insert/Update/Delete VMW case

System: Enter data of malaria case that report by VMW
Primary Actor: OD staff, PHD staff.
Scenario: When VMW does not report malaria data by smart phone then OD staff will be responsible for entering data.

Table diagram

+----------------+        +---------------------+
|                |        |                     |
|tblVMWActivity  |--------|tblVMWActivityCases  |
|                |        |                     |
+----------------+        +---------------------+
        |
        |
        |
+-----------------+
|                 |
|tblCensusVillage |
|                 |
+-----------------+

Controller: CaseReport.php ( , ,vmwDeleteReport)
- vmw() : view vwm page
- vmwGetPreData() get ODs, HFs, Treatments list.
- vmwGetReport() get VMWs’ villages and reported months list when you select HF.
- vmwGetCase() get vmw case report when you click on report month of any village.
- vmwUpdateCase() insert/update/delete case.
```
if(Rec_ID > 0)
  then update()
else if ( Rec_ID < 0 )
  then delete()
else insert()
```
View: vmwcase_view.php
ViewModel: VMWCase.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__CaseReport.php
|  |
|  |__views
|     |
|     |__vmwcase_view.php
|
|__media
   |
   |__ViewModel
      |
      |__VMWCase.js

HC

Insert/Update/Delete HC case

System: Tool for entering malaria case that report by health center/ referal hospital.
Actor: OD staff
Scenario: When HC/RH staff cannot report its case then OD staff will be responsible for entering data.

Table diagram

+---------------+        +------------------+
|               |        |                  |
|tblHFActivity  |--------|tblHFActivityCases|
|               |        |                  |
+---------------+        +------------------+
        |
        |
        |
+---------------+
|               |
|tblHFCodes     |
|               |
+---------------+

Controller: CaseReport.php
- hf() : view hf page
- hfGetPreData() Treatments list.
- hfGetReport() get HF and reported months list when you select OD.
- hfGetCase() get HF case report when you click on report month of any HF.
- hfUpdateCase() insert/update/delete case.
```
if( Rec_ID > 0 )
  then update()
else if ( Rec_ID < 0 )
  then delete()
else insert()
```
View: hfcase_view.php
ViewModel: HFCase.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__CaseReport.php
|  |
|  |__views
|     |
|     |__hfcase_view.php
|
|__media
   |
   |__ViewModel
      |
      |__HFCase.js

MMP

Insert/Update/Delete MMP case

System: Tool for MMP to enter malaria case.
Actor: MMP staff.
Scenario: MMP staff login and go to MMP tool then enter data.

Table diagram

+---------------+        +------------------+
|               |        |                  |
| tblMLActivity |--------|tblMLActivityCases|
|               |        |                  |
+---------------+        +------------------+
        |
        |
        |
+---------------+
|               |
|   tblMLCodes  |
|               |
+---------------+

Controller: CaseReport.php
- ml() : view MMP page
- mlGetPreData() get region, province and treatments list.
- mlGetReport() get group and reported months list when you select province.
- mlGetCase() get case report when you click on report month of any group.
- mlUpdateCase() insert/update/delete case.
```
if ( Rec_ID > 0 )
  then update()
else if ( Rec_ID < 0 )
  then delete()
else insert()
```
View: mlcase_view.php
ViewModel: MLCase.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__CaseReport.php
|  |
|  |__views
|     |
|     |__mlcase_view.php
|
|__media
   |
   |__ViewModel
      |
      |__MLCase.js

Police

Insert/Update/Delete Police case

Table diagram

+---------------+        +------------------+
|               |        |                  |
|tblPLActivity  |--------|tblPLActivityCases|
|               |        |                  |
+---------------+        +------------------+
        |
        |
        |
+---------------+
|               |
|tblPLCodes     |
|               |
+---------------+

Controller: CaseReport.php
- pl() : view police page
- plGetPreData() get province, troop, treatment list.
- plGetReport() get post, district, month report list.
- plGetCase() get case report when you click on report month.
- plUpdateCase() insert/update/delete case.
```
if ( Rec_ID > 0 )
  then update()
else if ( Rec_ID < 0 )
  then delete()
else insert()
```
View: plcase_view.php
ViewModel: PLCase.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__CaseReport.php
|  |
|  |__views
|     |
|     |__plcase_view.php
|
|__media
   |
   |__ViewModel
      |
      |__PLCase.js

Bed net

Insert/Update/Delete bed net

Tablet diagram

+-----------------+     +---------------+     +---------------+
|                 |     |               |     |               |
| tblCensusVillage|-----| tblMalBedNet  |-----| tblHFCodes    |
|                 |     |               |     |               |
+-----------------+     +---------------+     +---------------+

Controller: CaseReport.php
- bednet() : view bed net page.
- bednetGetReport() get groups and month report list.
- bednetGetCase() get bed net report when you click on report month.
- bednetUpdateCase() insert/update/delete bed net.
```
if ( Rec_ID > 0 )
  then update()
else if ( Rec_ID < 0 )
  then delete()
else insert()
```
- bednetDeleteReport() delete report.
View: bednet_view.php
ViewModel: Bednet.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__CaseReport.php
|  |
|  |__views
|     |
|     |__bednet_view.php
|
|__media
   |
   |__ViewModel
      |
      |__Bednet.js

MMP bed net

Insert/Update/Delete MMP bed net

Tablet diagram

+-------------+    +-------------+
|             |    |             |
| tblMLBednet |----| tblMLCodes  |
|             |    |             |
+-------------+    +-------------+

Controller: CaseReport.php
- bednetML() : view MMP bed net page.
- mlGetPreData() get region, province and treatments list.
- bednetMLGetReport() get groups and month report list.
- bednetMLGetCase() get bed net report when you click on report month.
- bednetMLUpdateCase() insert/update bed net.
```
if ( Rec_ID == -1 )
  then insert()
else update()
```
- bednetMLDeleteReport() delete report.
View: mlbednet_view.php
ViewModel: MLBednet.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__CaseReport.php
|  |
|  |__views
|     |
|     |__mlbednet_view.php
|
|__media
   |
   |__ViewModel
      |
      |__MLBednet.js

Police bed net

Insert/Update/Delete police bed net report

Tablet diagram

+-------------+         +------------------+
|             |         |                  |
| tblPLBednet | --------|tblPLTroopCodes   |
|             |         |                  |
+-------------+         +------------------+

Controller: CaseReport.php
- bednetPL() : view police bed net page.
- plGetPreData() get province list.
- bednetPLGetReport() get troop and month report list.
- bednetPLGetCase() get bed net report when you click on report month.
- bednetPLUpdateCase() insert/update bed net.
```
if ( Rec_ID == -1 )
  then insert()
else update()
```
- bednetPLDeleteReport() delete report.
View: plbednet_view.php
ViewModel: PLBednet.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__CaseReport.php
|  |
|  |__views
|     |
|     |__plbednet_view.php
|
|__media
   |
   |__ViewModel
      |
      |__PLBednet.js

Bed net other

Insert/Update/Delete other bed net report

Tablet diagram

+-------------------+
|                   |
| tblMalBednetOther |
|                   |
+-------------------+

Controller: CaseReport.php
- bednetother() : view police bed net page.
- bednetOtherGetReport() get troop and month report list.
- bednetOtherUpdateReport() insert/update/delete bed net.

if ( Rec_ID > 0 )
  then update()
else if ( Rec_ID < 0 )
  then delete()
else insert()

View: bednetother_view.php
ViewModel: BednetOther.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__CaseReport.php
|  |
|  |__views
|     |
|     |__bednetother_view.php
|
|__media
   |
   |__ViewModel
      |
      |__BednetOther.js

Questionaire

tblQuestion11 , tblQuestion12, tblQuestion21, tblQuestion13, tblQuestion22

Annex 1: Village Selection

Table

+---------------+
|               |
| tblQuestion11 |
|               |
+---------------+

Controller: Question.php
- index(Q11) view page.
- getData(tblQuestion11) retrieve data.
Controller: Direct.php
- insert()
- update()
View: question11_view.php
ViewModel: Question11.js

Annex 2: Hotspot Identification

Table

+---------------+
|               |
| tblQuestion12 |
|               |
+---------------+

Controller: Question.php
- index(Q12) view page.
- getData(tblQuestion12) retrieve data.
Controller: Direct.php
- insert()
- update()
View: question12_view.php
ViewModel: Question12.js

Annex 4: MMW Recruitment

Table

+---------------+
|               |
| tblQuestion21 |
|               |
+---------------+

Controller: Question.php
- index(Q21) view page.
- getData(tblQuestion21) retrieve data.
Controller: Direct.php
- insert()
- update()
View: question21_view.php
ViewModel: Question21.js

Annex 5, 6: Site Visit Active Screening

Table

+---------------+
|               |
| tblQuestion13 |
|               |
+---------------+

Controller: Question.php
- index(Q13) view page.
- getData(tblQuestion13) retrieve data.
Controller: Direct.php
- insert()
- update()
View: question13_view.php
ViewModel: Question13.js

Annex 7: Forest Pack

Table

+---------------+
|               |
| tblQuestion22 |
|               |
+---------------+

Controller: Question.php
- index(Q22) view page.
- getData(tblQuestion22) retrieve data.
Controller: Direct.php
- insert()
- update()
View: question22_view.php
ViewModel: Question22.js

Foci investigation

Table v1

+-----------------------+     +-------------------+
|                       |     |                   |
| tblFociInvestiation   |-----| tblCensusVillage  |
|                       |     |                   |
+-----------------------+     +-------------------+

Table v2

+-----------------------+     +-------------------+
|                       |     |                   |
| tblFociInvestiation2  |-----| tblCensusVillage  |
|                       |     |                   |
+-----------------------+     +-------------------+

List of foci

Controller: Foci.php
- index() view page
- getData() we use store procedure SP_Get_FociList
- getDetail()
View: foci_view.php
ViewModel: Foci.js

Detail of foci v1

Controller: Foci.php
- open(village_code) to open form of foci v1.
- save1() to save data of foci v1.
```
if ( Rec_ID == null )
  then insert()
else update()
```
- getPatient()
View: foci1_view.php
ViewModel: Foci1.js

Detail of foci v2

Controller: Foci.php
- open(village_code) to open form of foci v2.
- save2() to save data of foci v2.
```
if ( Rec_ID == null )
  then insert()
else update()
```
- getClassify()
View: foci1_view.php
ViewModel: Foci1.js

Follow up

VMW follow up

System: Followup tool for enter VMW followup data.
Primary actor: OD staff.
Scenario: When VMW report malaria case with Pv or Mix specie then system will create patient code and write to database and create VMW notification log. when patient go to health center to get Pv radical cure then Hc staff update case by adding G6PD result and number of primaquine then system will create follow up form for that patient. In case Hc does not enter data then OD staff will be responsible for entering data.

Table

+----------------+
|                |
| tblVMWFollowup |
|                |
+----------------+

Controller: VMWFollowup.php
- getData() get list of VMW follow up
- getDetail() get detail of VMW follow up
- delete() delete follow up.
- save() insert/update
```
if ( empty (Rec_ID) )
  then insert()
else update()
```
View: vmwfollowup_view.php
ViewModel: VMWFollowup.js

HC follow up

System: Followup tool for enter HF followup data.
Primary actor: OD staff.
Scenario: When HC report malaria case with Pv or Mix specie then system will write to database and generate patient code. If patient come from Village that has VMW system will create VMW Notificatino, otherwise system will create HC notification. If that patient get Pv radical cure service then Hc update case by enter result of G6PD and number of primaquine then system will create follow up form. in case Hc staff does not enter followup data in time then OD staff will be responsible for entering data.

Table

+---------------+
|               |
| tblHCFollowup |
|               |
+---------------+

Controller: HCFollowup.php
- getData() get list of follow up
- getDetail() get detail of follow up
- delete() delete follow up.
- save() insert/update
```
if ( empty (Rec_ID) )
  then insert()
else update()
```
View: hcfollowup_view.php
ViewModel: HCFollowup.js

HIS data upload

Table diagram

+-----------------+     +-----------------+     +-----------------+     +-----------------+
|                 |     |                 |     |                 |     |                 |
| tblHisDipstick  |     |    tblHisSlide  |     |   tblHisTreat   |     |    tblHisVMW    |
|                 |     |                 |     |                 |     |                 |
+-----------------+     +-----------------+     +-----------------+     +-----------------+

Controller: HIS.php
- getData() get list of his report
- getDetail() show detail of report by month
- getReport() show report of HIS and MIS
- upload() upload excel file of HIS
- delete() delete report
View his_view.php
ViewModel: HIS.js

Border malaria case upload

Table

+----------------+
|                |
| tblBorderCases |
|                |
+----------------+

Controller: BorderImport.php
View: borderimport_view.php
ViewModel: BorderImport.js

VMW QA

System: VMW QA tool for OD/PHD monitor VMW.
Actor: OD , PHD
Scenario: When HC/OD/PHP use tablet to enter data, then OD/PHD can use this tool to view questionaire, supervision schedule, Monitor, Report, Dashboard.

Table diagram

+---------------------+     +---------------------------+     +-------------------------+
|                     |     |                           |     |                         |
| tblVMWQuestionnaire |-----| tblVMWQuestionnaireDetail |-----| tblVMWQuestionnaireItem |
|                     |     |                           |     |                         |
+---------------------+     +---------------------------+     +-------------------------+

Controller: VMWQA.php
View: vmwqa_view.php
ViewModel: VMWQA.js

Lastmile

System: Last mile
Actor: OD/PHD
Scenario: When VMW cannot enter data, then OD staff will be responsible for entering data.

Table diagram

+----------------------+     +----------------------------+     +----------------+
|                      |     |                            |     |                |
| tblLastmileHouseHold |----<| tblLastmileHouseHoldMember |----<| tblLastmileTDA |
|                      |     |                            |     |                |
+----------------------+     +----------------------------+     +----------------+
                                |                   |
                                |                   |
                        +----------------+    +----------------+
                        |                |    |                |
                        | tblLastmileIPT |    | tblLastmileAFS |
                        |                |    |                |
                        +----------------+    +----------------+

Controller: Lastmile.php
View: lastmile_view.php
ViewModel: Lastmile.js

Note

TDA1 and TDA2 must be 28 days apart.

Must complete TDA1/TDA2 before do IPT.

IPT and TDA1 must be 14 days apart.

IPT and TDA2 must be 28 days apart.

Check list

Check list HC

Table diagram

+----------------+      +----------------------+
|                |      |                      |
| tblChecklistHC |-----<| tblChecklistHCDetail |
|                |      |                      |
+----------------+      +----------------------+

Controller: Checklist.php
View: checklist_hc_view.php
ViewModel: Checklist_HC.js

Check list OD

Table diagram

+----------------+      +----------------------+
|                |      |                      |
| tblChecklistOD |-----<| tblChecklistODDetail |
|                |      |                      |
+----------------+      +----------------------+

Controller: Checklist.php
View: checklist_od_view.php
ViewModel: Checklist_OD.js

Check list EPI

Table diagram

+-----------------+      +-----------------------+
|                 |      |                       |
| tblChecklistEPI |-----<| tblChecklistEPIDetail |
|                 |      |                       |
+-----------------+      +-----------------------+

Controller: Checklist.php
View: checklist_epi_view.php
ViewModel: Checklist_EPI.js

Stock

Stock request

Table diagram

+------------+      +------------+
|            |      |            |
| tblStockV2 |-----<| tblHFCodes |
|            |      |            |
+------------+      +------------+

Controller: Stock.php
- request() view UI of stock request.
- getRequest() get stock request data.
- getDetail() get detail stock item of hc.
- offer() confirm stock offer.
View: stockrequest_view.php
ViewModel: StockRequest.js

Stock Data

Stock HC

+------------+      +------------+
|            |      |            |
| tblStockV2 |-----<| tblHFCodes |
|            |      |            |
+------------+      +------------+

Controller: Stock.php
- report() view UI of stock data.
- getReportHF() get month of report.
- getReportDetailHF() get detail sotck item data.
- exportExcel() export to excel.
- saveStockHF() Insert/Update stock data.
```
if (Rec_ID == 0)
  Insert()
else Update()
```
View: stockreport_view.php
ViewModel: StockReport.js

Stock OD

+------------+      +------------+
|            |      |            |
| tblStockOD |-----<|    tblOD   |
|            |      |            |
+------------+      +------------+

Controller: Stock.php
- report() view UI of stock data.
- getReportOD() get month of report.
- getReportDetailOD() get detail sotck item data.
- exportExcel() export to excel.
- saveStockOD() Insert/Update stock data.
```
if (Rec_ID == 0)
  Insert()
else Update()
```
View: stockreport_view.php
ViewModel: StockReport.js

Stock CNM

Table diagram

+-------------+
|             |
| tblStockCNM |
|             |
+-------------+

Controller: Stock.php
- report() view UI of stock data.
- getReportCNM() get month of report.
- getReportDetailCNM() get detail sotck item data.
- exportExcel() export to excel.
- saveStockCNM() Insert/Update stock data.
```
if (Rec_ID == 0)
  Insert()
else Update()
```
View: stockreportcnm_view.php
ViewModel: StockReportCNM.js

Stock item

System: tool for admin to set up stock item (which item is for OD/HC)
Actor: Admin
Scenario: Admin use this tool to Insert/update/Setup stock item.

Table diagram

+--------------+
|              |
| tblStockItem |
|              |
+--------------+

Controller: Stock.php
- item() view UI of stock data.
- getItem() get month of report.
- saveItem() Insert/Update stock data.
```
if (Id == 0)
  Insert()
else Update()
```
View: stockitem_view.php
ViewModel: StockItem.js

Report

Dashboard

Controller: Dashboard.php
Main View: dashboard_v2_view.php
Sub view:
- dashboard_overview_view.php
- dashboard_border_view.php
- dashboard_intensification_view.php
- dashboard_ipmappopup_view.php
- dashbarod_map_view.php
- dashboard_outbreak_view.php
- dashbaord_overview_view.php
- dashboard_pfmap_view.php
- dashboard_stock_view.php
- dashboard_surveillance_view.php
- dashboard_table_view.php
Main ViewModel: Dashboard.js
Sub ViewModel:
- Dashboard_Border.js
- Dashboard_Intensification.js
- Dashboard_Map.js
- Dashboard_Outbreak.js
- Dashboard_PFMap.js
- Dashboard_Overview.js
- Dashboard_Stock.js

Note

We use store procedure to retrieve data

To improve performance, first load data will read from file. all files is in root\media\Dashboard\Preload Data directory

Overview

Insecticide Treated Net (ITN)

Store procedure: SP_Dashboard_OverviewNet

National Surveillance data (55 ODs)

Store procedure: SP_Dashboard_OverviewCase2

Top 10 Villages having most cases by species

Store procedure: SP_Dashboard_ChartTop30Vill

Top 10 HFs having most cases by species

Store procedure: SP_Dashboard_ChartTop30HF

Treated malaria cases from HF and VMW by month

Store procedure: SP_Dashboard_OverviewChart

Severe malaria cases and deaths from HF by month

Store procedure: SP_Dashboard_OverviewChart

Malaria test results (HF, VMW) by species

Store procedure: SP_Dashboard_OverviewChart

Number of malaria-reported case and death by year

Store procedure: SP_Dashboard_ChartCaseDeathSpecie

Percentage of malaria cases by species and year

Store procedure: SP_Dashboard_ChartCaseDeathSpecie

Percentage of malaria cases by sex and age group

Store procedure: SP_Dashboard_ChartSexAge

Malaria Cases by Species, Provinces and Year

Store procedure: SP_Dashboard_ChartSpecieProvince

Malaria Incidence and Mortality Rate by Year and Provinces

Store procedure: SP_Dashboard_ChartIncidentMortality

Surveillance

Store procedure: SP_Dashboard_SurveillanceData2

Stock

Current Stock HF Info by OD

Count number of HF by status by OD (out of stock, low stock, Proper stock, congested stock)

Store procedure: SP_Dashboard_Stock

Current Stock HF info by Province

Count number of HF by status by province (out of stock, low stock, Proper stock, congested stock)

Store procedure: SP_Dashboard_Stock

Malaria commodity map

Map of HF by status (out of stock, low stock, Proper stock, congested stock)

Store procedure: SP_Dashboard_StockMap

Current stock HF Item by OD

Count balance of HF’s item by OD.

Store procedure: SP_Dashboard_Stock

Current stock HF Item by province

Count balance of HF’s item by province.

Store procedure: SP_Dashboard_Stock

Top 30 HFs malaria commodity having most case

Count RDT, ASMQ, PQ of HFs that having most case.

Store procedure: SP_Dashboard_StockTop30HF

Discrepancy between malaria cases and commodity

Store procedure: SP_Dashboard_StockDiscrepancy

Border

Trends in border areas

number of malaria case of border (Lao, Thailand, Vietnam)

Store procedure: SP_Dashboard_BorderChart

Malaria cases by commune along the border

Store procedure: SP_Dashboard_BorderMap

Map

Annual foci classification and monitoring

Store procedure: SP_Dashboard_MapFoci

Note

if duration of foci less than or equal to 12 months then it is Active Focus

if duration of foci between 13 months and 36 months then it is Residual Focus

if duration of foci more than 36 months this it is Cleared

Malaria cases by OD

Store procedure: SP_Dashboard_ChartTop10OD

Malaria hotspot by village

Malaria hotspot by village for last 36 months

Store procedure: SP_Dashboard_MapTop30Vill

Note

step 1: total positive case by village.
step 2: top 30 villages by total positive cases by each month.
step 3: top 30 villages that most frequent from second step.

Malaria aber percentage by OD

Store procedure: SP_Dashboard_MapAber

Note

Aber = total test * 100 / total population

Malaria Incidence by OD

Store procedure: SP_Dashboard_MapODInc

Note

Incidence = total positive * 1000 / total population

Malaria API Map by Village

Store procedure: SP_Dashboard_APIByVillageMap

Note

API = total postive * 1000 / total population
if village without population number then total population = 500
Annex village doesn’t include.

Table

Monthly malaria cases by species reported by provinces (55 ods)

Store procedure: SP_Dashboard_TableSpecieProvinceMonth

Monthly severe malaria cases reported by provinces (55 ods)

Store procedure: SP_Dashboard_TableSevereMonth

Number / percentage of malaria cases by age groups and sex by year (55 ods)

Store procedure: SP_Dashboard_TableAgeSex

Number of malaria species by age groups and sex (55 ods)

Store procedure: SP_Dashboard_TableAgeSexSpecie

Number of malaria severe cases by age groups and sex (55 ods)

Store procedure: SP_Dashboard_TableAgeSexSevere

CNM Outbreak detection tool

Store procedure: SP_Dashboard_OutbreakDetection

PF Map

Map

Store procedure: SP_Dashboard_PFMap

Number of places that have pf and mix cases

Store procedure: SP_Dashboard_PFMapCount

Reports

Controller: Report.php
Model View: Report.js
View: report_view.php

Report are able filter by province, OD, Health center, Village, Year, Quarter, Month, Month from and Month to

VMW

VMW Report Completeness

Store procedure: SP_V1_VMWReportCompleteness

show percentage of data that insert by VMW by month.

VMW Report timeline

Store procedure: SP_V1_VMWReportTimeline

VMW Data accuracy

Store procedure: SP_V1_VMWDataAccuracy

VMW Report Received

Store procedure: SP_V1_VMWReportReceived

show number of report that report by VMW compare with number VMW.

VMW Data (summary)

Store procedure: SP_V1_VMWDataSummary

Data of VMW sum by level of Province, OD, HF.

Note

Passive = 1 it means outreach

VMW Data (By village)

Store procedure: SP_V1_VMWDataByVillage

Data of VMW sum by level of Province, OD, HF, VMW village

VMW Data by month

Data of VMW by Month

Store procedure: SP_V1_VMWDataByMonth

Filter by:

Pf + Pv + Mix
Pf + Mix
Pf
Pv
Mix

Health Facility

HF Report Completeness

Percentage of report by month

Store procedure: SP_V1_HFReportCompleteness

HF Report timeline

Store procedure: SP_V1_HFReportTimeline

HF Report Accuracy

Store procedure: SP_V1_HFDataAccuracy

HF Report Received

Store procedure: SP_V1_HFReportReceived

HF Data (Summary)

Data of HF sum by level of Province, OD, HF

Store procedure: SP_V1_HFDataSummary

HF Data (By Village)

Data of HF sum by level of Province, OD, HF, Village

Store procedure: SP_V1_HFDataByVillage

HF Data by Month

Store procedure: SP_V1_HFDataByMonth

Filter by:

Pf + Pv + Mix
Pf + Mix
Pf
Pv
Mix

HF + VMW

Top 10 ODs having most cases

Data of Top 10 ODs having most cases for current and last year

Store procedure: SP_V1_HFVMWTop10OD

Top 30 HFs Having Most Cases

Data of top 30 HFs having most cases for current and last year.

Store procedure: SP_V1_HFVMWTop30HF

HFs having most cases (chart)

Store procedure: SP_V1_HFVMWTop30HFChart

Parameter filter

Top 10

Top 20

Top 30

Villages Having Most Cases (chart)

Store procedure: SP_V1_HFVMWTop30VillChart

Parameter filter

Top 10

Top 20

Top 30

HF + VMW Data (summary)

Data of HF and VMW level by Province, OD, HF

Store procedure: SP_V1_HFVMWDataSummary

Pv Radical Cure and Follow up

Store procedure: SP_V1_HFVMWPvFollowup

High Risk Villages

Store procedure: SP_V1_HighRiskVillage

Bed Net

Bed Net by Province

Parameter filter:

All (value: all)
Mobile + Continue (value: mc)

Store procedure: SP_V1_BedNetReport
- Parameter of store procedure: bednetType, bednetDuration, level
- Level: pv

Bed Net by OD

Parameter filter:

By Filter (value: 1)
Last 3 Years (value: 3)

Store procedure: SP_V1_BedNetReport
- Parameter of store procedure: bednetType, bednetDuration, level
- Level: od

Bed Net by HC

Store procedure: SP_V1_BedNetReport
- Parameter of store procedure: bednetType, bednetDuration, level
- Level: hc

Bed Net by Village

Store procedure: SP_V1_BedNetReport
- Parameter of store procedure: bednetType, bednetDuration, level
- Level: vl

Percentage of Pop at-risk covered by LLIN mass campaigns

Store procedure: SP_V1_PercentPopLLIN

Population Data Completeness

Store procedure: SP_V1_PopCompleteness

investigation

Investigation and ReACD

Parameter filter:
- HF + VMW (value: all)
- HF (value: hf)
- VMW (value: vmw)
- By Report Date (value: 0)
- By Diagnosis Date (value: 1)
Store procedure: SP_V1_Investigation

M&E Elimination

Store procedure: SP_V1_MnEElimination

Radical Cure HSD

Store procedure: SP_V1_RadicalCureHSD

Stock

OD Stock Completeness

Store procedure: SP_V1_StockODCompleteness

HF Stock Completeness

Store procedure: SP_V1_StockHFCompleteness

HF Stock-out (ACT)

Data of number of HF that has stock out ACT.

Store procedure: SP_V1_HFStockOut
- Parameter of store procedure: category , ACT

HF Stock-out (RDT)

Data of number of HF that has stock out RDT.

Store procedure: SP_V1_HFStockOut
- Parameter of store procedure: category, RDT

OD Stock Data

List of stock data with all items

Store procedure: SP_V1_StockOD

HF Stock Data

List of stock data with all items

Store procedure: SP_V1_StockHC

Stock Forecasting

Primaquine Distribution List (7.5 mg)

Store procedure: SP_V1_Primaquine
- Pf with age between 5 and 14 years then #Pf x 1
- Pf with age greater than 14 years then #Pf x 2
- Pv and Mix with G6PD (U/g Hb) > 6 & Hb(g/dL) > 9 and Age between 5 and 10 years then 14
- Pv and Mix with G6PD (U/g Hb) > 6 & Hb(g/dL) > 9 and Age between 11 and 14 years then 28
- Pv and Mix with G6PD (U/g Hb) > 6 & Hb(g/dL) > 9 and Age between 15 and 49 years then 42
- Pv and Mix with G6PD (U/g Hb) > 6 & Hb(g/dL) > 9 and Age greater than 49 years then 56
- HC Buffer (Calculation = Need x Min Stock HC (1))
- OD Buffer (Calculation = Need x Min Stock OD (3))
- Central (Calculation = Need x Min Stock CMS (6))

G6PD Distribution

Store procedure: SP_V1_G6PD
- Needs (Calculation = #case_HF (PV+Mix) + #case_VMW (PV+Mix) * refered )
- HC Buffer (Calculation = Need x Min stock HC (1))
- OD Buffer (Calculation = Need x Min stock OD (3))
- Central (Calculation = Need x Min stock CMS (6))

RDT Forecasting

Store procedure: SP_V1_StockForecasting
- Parameter store procedure: type = rdt
- Aber (Calculation = # Test / # Population)
- Need (Calculation = RDT x (1+GrowthRate))
- HC Buffer (Calculation = Average monthly RDT needs for past 12 months x 1)
- OD Buffer (Calculation = Average monthly RDT needs for past 12 months x 3)
- Central Buffer (Calculation = Average monthly RDT needs for past 12 months x 6)
- None-Endemic HC (Calculation = # None-Endemic Province * 25)
- New VMW (Calculation = # New VMW * 100)

ASMQ Forecasting

Store procedure: SP_V1_StockForecasting
- Parameter store procedure: type = asmq
- Need (Calculation = Positive rate x # Expected No. of Test - # Pregnant Woman < 3 months + # Severe case)
- HC Buffer (Calculation = Average monthly ASMQ needs for past 12 months x 1)
- OD Buffer (Calculation = Average monthly ASMQ needs for past 12 months x 3)
- Central Buffer (Calculation = Average monthly ASMQ needs for past 12 months x 6)

Intensification Plan

Store procedure: SP_V1_IntensificationPlan
Parameter filter:
- IP1 (value: 1)
- IP2 (value: 2)

Admin Tools

Dashboard Log by Role

Store procedure: SP_V1_DashboardLogByRole

Dashboard Log by User

Store procedure: SP_V1_DashboardLogByUser

System Log by Role

Store procedure: SP_V1_SystemLogByRole

System Log by User

Store procedure: SP_V1_SystemLogByUser

HF Refered Error

Store procedure: SP_V1_HFErrorCheck

VMW Referred Error

Store procedure: SP_V1_VMWErrorCheck

Other

For supervision checklist

Store procedure: SP_V1_SupervisionChecklist

Lastmile

Store procedure: SP_V1_LastMile

Report M&E

Parameter filter: - Year - Month from - Month to - Grant

Annual cases whole country

Store procedure: SP_V2_AnnualCaseCountry

Note

Annual cases whole country = MIS Data + HIS Data

Annual cases endemic ODs

Store procedure: SP_V2_AnnualCaseOD

Note

Case in endemic 55 ODs

CI & FI

Store procedure: SP_V2_CIFI

Whole country cases HF

Store procedure: SP_V2_CaseFromHF

Note

Whol country cases HF = MIS data HF + HIS data HF

Malaria Cases VMW

Store procedure: SP_V2_CaseFromVMW

HF Completeness

Store procedure: SP_V2_HFCompleteness

VMW Completeness

Store procedure: SP_V2_VMWCompleteness

Nets distribution (Mass Campaign)

Store procedure: SP_V2_NetStatic

Nets distribution (Mobile)

Store procedure: SP_V2_NetMobile

Nets distribution (Continue)

Store procedure: SP_V2_NetContinue

Other nets distribution

Store procedure: SP_V2_NetOther

Public Health Facility Without Stock-out

Store procedure: SP_V2_HaveStock

Report Director

Controller: ReportDirector.php
- index() : view director report page.
- getReport() to retrieve data.
- export() to export data into excel file.
Note

We use MISExcel.exe for exporting data into excel file. MISExcel.exe was developed by Csharp programing language.
View: reportdirector_view.php
ViewModel: ReportDirector.js
Store procedure: - SP_ReportDirector1 - SP_ReportDirector2 - SP_ReportDirector3 - SP_ReportDirector4 - SP_ReportDirector5

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__ReportDirector.php
|  |
|  |__views
|     |
|     |__reportdirector_view.php
|
|__media
   |
   |__ViewModel
      |
      |__ReportDirector.js

Pivot

Controller: PivotChart.php
- index() view pivot page
- getData() get data by reading json file that located in C:/MIS/Pivot Data directory
- exportExport() export data into excel file.

  Note

  We use MISExcel.exe for exporting data into excel file. MISExcel.exe was developed by Csharp programing language.
View: pivotchart_view.php
ViewModel: PivotChart.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__PivotChart.php
|  |
|  |__views
|     |
|     |__pivotchart_view.php
|
|__media
   |
   |__ViewModel
      |
      |__PivotChart.js

Investigation Map

Controller: InvestigationMap.php
- index() view pivot page
- getData() get data by reading from store procedure SP_InvMap_HCData
View: investigationmap_view.php
ViewModel: InvestigationMap.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__InvestigationMap.php
|  |
|  |__views
|     |
|     |__investigationmap_view.php
|
|__media
   |
   |__ViewModel
      |
      |__InvestigationMap.js

Bulletin

Controller: Bulletin.php
- index() view bulletin page
- getList() get list of bulletin that created.
- getOldData() get detail of data that created.
- getNewData() get pre data that will create.
- save() to save data
View: bulletin_view.php
ViewModel: Bulletin.js
Database Table: tblBulletin

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__Bulletin.php
|  |
|  |__views
|     |
|     |__bulletin_view.php
|
|__media
   |
   |__ViewModel
      |
      |__Bullentin.js

Pv Radical Cure Map

Controller: PvRadicalCureMap.php
- index() view Pv Radical Cure Map page
- getData() get data to generate map by using store procedure SP_PvMap.
- getDetail() get detail of data by using store procedure SP_PvMap_Detail.
View: pvradicalcuremap_view.php
ViewModel: PvRadicalCureMap.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__PvRadicalCureMap.php
|  |
|  |__views
|     |
|     |__pvradicalcuremap_view.php
|
|__media
   |
   |__ViewModel
      |
      |__PvRadicalCureMap.js

Master Data Management

System Menu

Controller: Home.php
- sysmenu($code_prov = '', $systable = 'choose') : View page system menu.
- getSystemTable() : get system menu tab. (Drug Outlets, Health Facilities, Village, Population, House Hold, Province, OD, District, Commune, HF Log, VMW Log, Bed Net Target, Police Troop, Police Post, Environment Office, Environment Community)
View:
- nav_bednettarget.php
- nav_choose.php
- nav_commune.php
- nav_district.php
- nav_drugoutlets.php
- nav_envcommunity.php
- nav_envoffice.php
- nav_group.php
- nav_healthfacility.php
- nav_hflog.php
- nav_hhold.php
- nav_od.php
- nav_plpost.php
- nav_pltroop.php
- nav_population.php
- nav_province.php
- nav_regional.php
- nav_village.php
- nav_vmwlog.php
ViewModal:
- Nav_BedNetTarget.js
- Nav_Commune.js
- Nav_District.js
- Nav_Drugoutlets.js
- Nav_EnvCommunity.js
- Nav_EnvOffice.js
- Nav_Group.js
- Nav_Healthfacility.js
- Nav_HFLog.js
- Nav_HHold.js
- Nav_OD.js
- Nav_PLPost.js
- Nav_PLTroop.js
- Nav_Population.js
- Nav_Province.js
- Nav_Regional.js
- Nav_Village.js
- Nav_VMWLog.js

User

Table diagram

+----------+        +----------+        +--------------------+     +----------------+
|          |        |          |        |                    |     |                |
|MIS_User  |>|------| MIS_Role |------|<| MIS_RolePermission |---|<| MIS_Permission |
|          |        |          |        |                    |     |                |
+----------+        +----------+        +--------------------+     +----------------+
                                                                            V
                                                                            |
                                                                  +--------------------+
                                                                  |                    |
                                                                  |MIS_PermissionGroup |
                                                                  |                    |
                                                                  +--------------------+

Controller: User.php
View: user_view.php
ViewModel: User.js

root
|
|__application
|  |
|  |__controller
|  |  |
|  |  |__User.php
|  |
|  |__views
|     |
|     |__user_view.php
|
|__media
   |
   |__ViewModel
      |
      |__User.js

Device

HF Device

Table diagram

+--------------+
|              |
| tblHFDevice  |
|              |
+--------------+

Controller:
- hfGetRequest(): to get list of request device form hf.
- hfDeviceList(): to get list of HF device that registered.
View: device_view.php
ViewModel: Device.js

VMW Device

Table diagram

+--------------+
|              |
| tblVMWDevice |
|              |
+--------------+

Controller:
- vmwGetRequest(): to get list of request device form VMW.
- vmwDeviceList(): to get list of VMW device that registered.
View: device_view.php
ViewModel: Device.js

CMI Device

Table diagram

+------------------+
|                  |
| tblDeviceMalInfo |
|                  |
+------------------+

Controller:
- getCMIDevices(): to get list of CMI device that registered.
View: device_view.php
ViewModel: Device.js

Place Permission

To enable Feature on Tablet and smart phone application.

Controller: PlacePermission.php
View: placepermission_view.php
ViewModel: PlacePermission.js
